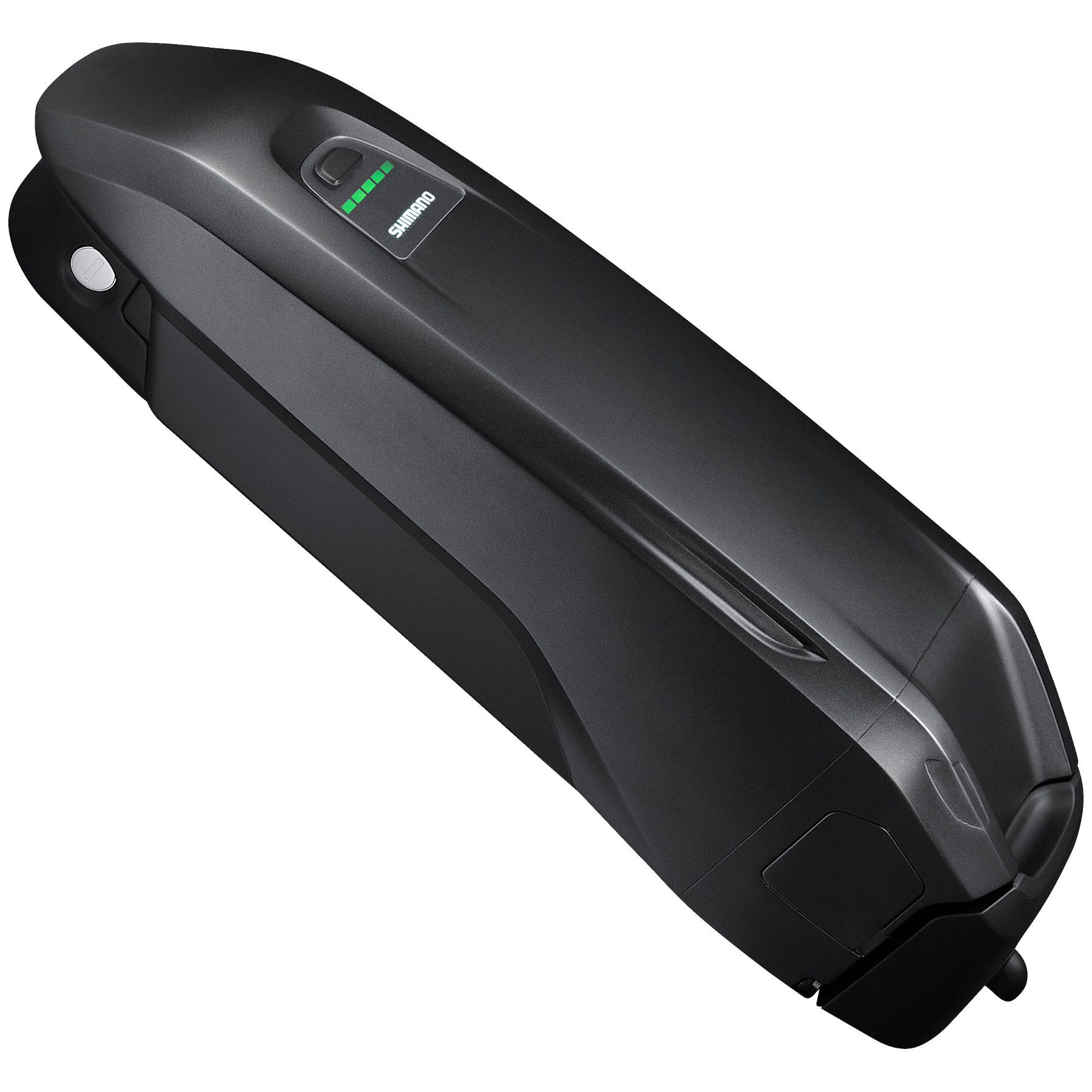

The BT-E8010 battery from Shimano is conceived for mounting on the down tube of the frame. The design, which is especially suitable for use on the E-MTB, is characterized by a flat profile, the impact and vibration-resistant construction as well as its waterproofness.

Thanks to the 1st generation STePS battery management system and the capacity of 504 Wh, riders benefit from both an increased range and shorter charging times. And the compact lithium-ion battery is also durable: even after more than 1,000 charging cycles, 60 % of the original capacity is still retained.

Technical details of the Shimano STePS BT-E8010 battery

• Battery Management System: 1st generation
• battery type: Li-Ion
• capacity: 504 Wh (36 V / 14 Ah)
• service life: > 1000 charging cycles (with 60 % of the original capacity remaining)
• charging time (100 %): 4.0 / 4.5 h (with EC-E8004 / at 100 V AC)
• charging time (80 %): 2.5 / 3.2 h (with EC-E8004 / at 100 V AC)
• mounting position: frame (down tube), external
• features: charge level indicator, error signal, on/off switch
• weight: approx. 2.6 kg (manufacturer’s specification)

Scope of supply:

1 battery (without charger, mount and lock)

Manufacturer’s recommendations:

• charger: EC-E8004, EC-E6002
• mount: BM-E8016
• mounting aid: TL-BME02

Country code: H (IBTE8010H) – for EU (27 countries), CHE, ISL, NOR, GBR, TUR, IDN, KOR, ISR, ZAF, AUS, NZL, ARG, MEX, CRI
